1957 Airbox Corvette

Here's a question worthy of debate: What is the most desirable and collectable Corvette?

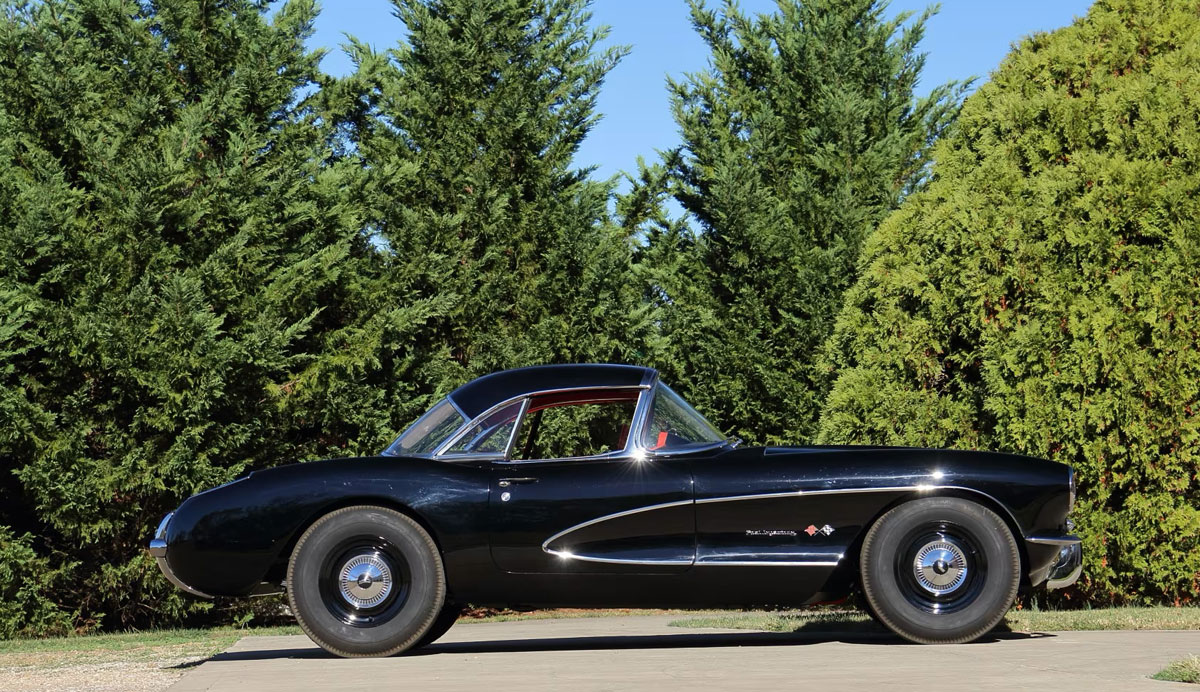

1957 Airbox Corvette Sold at Mecum Auctions

1957 Airbox Corvette Sold at Mecum Auctions

Close1957 Airbox Corvette Sold at Mecum Auctions

There is of course no absolutely correct answer; there are many opinions on the subject and it all comes down to personal taste and preferences.

Your author has a definite opinion and that would be the 1957 Airbox Corvette. It was a cold air induction system which was (and still is) a popular and effective method of upping horsepower by arranging for the engine to be fed cold air.

The Corvette Black Book says that 43 were built but there are rumors of up to 50. Approximately 22 are known to exist. The airbox Corvette is a true race car that was often campaigned "back in the day". The life of a race car in the '50s and '60s was not an easy one; to make things worse they were not thought of as valuable then so their survival rate was low.

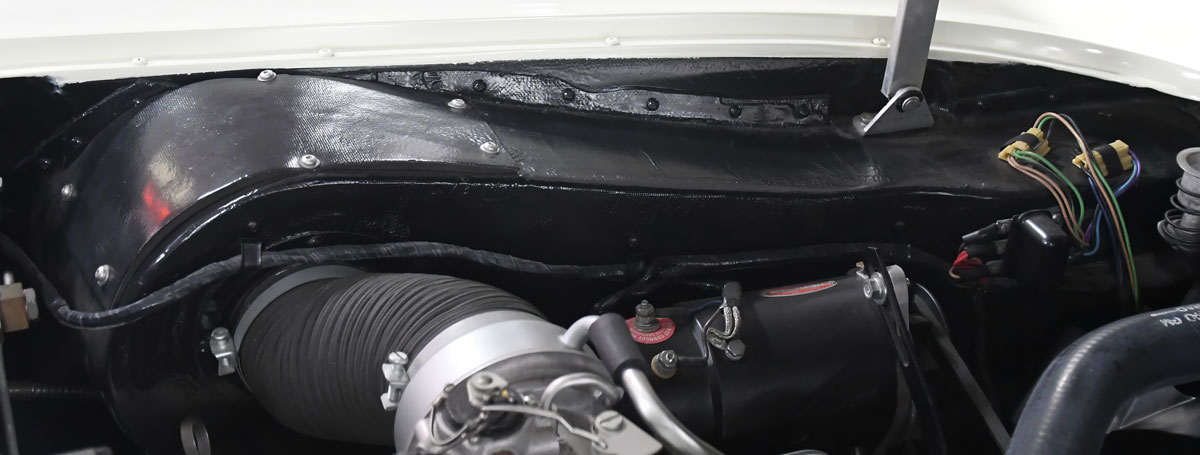

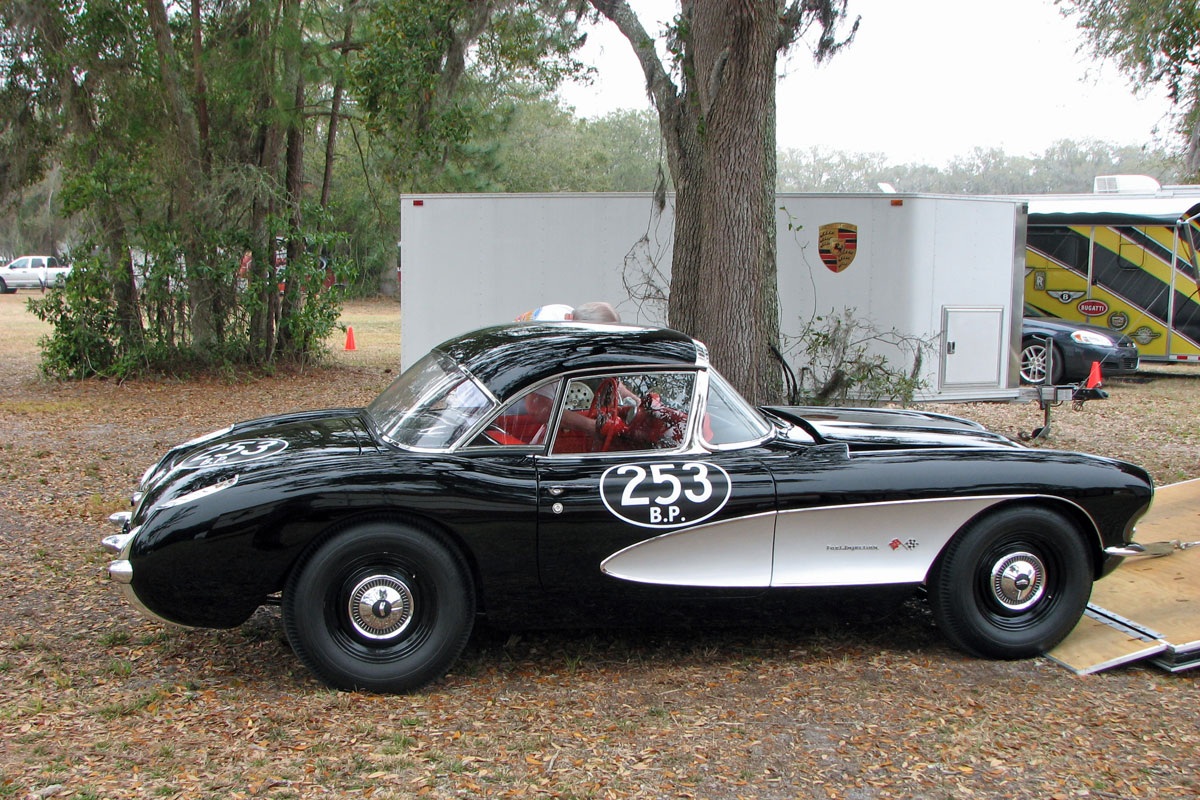

1957 Corvette Airbox Number 253

1957 Corvette Airbox Number 253

Close1957 Corvette Airbox Number 253

It was a one year only option for '57 with the Code moniker of 579D. Some documentation listed 579E as the Code. The intention was a racing only option as all were built without radios, EMI ignition shielding, heaters, power tops and windows, courtesy lights and windshield washers. There was a 579D Code for 1958, but it was only a fuel injected induction and did not include an airbox.

1957 Corvette Airbox

1957 Corvette Airbox

Close1957 Corvette Airbox

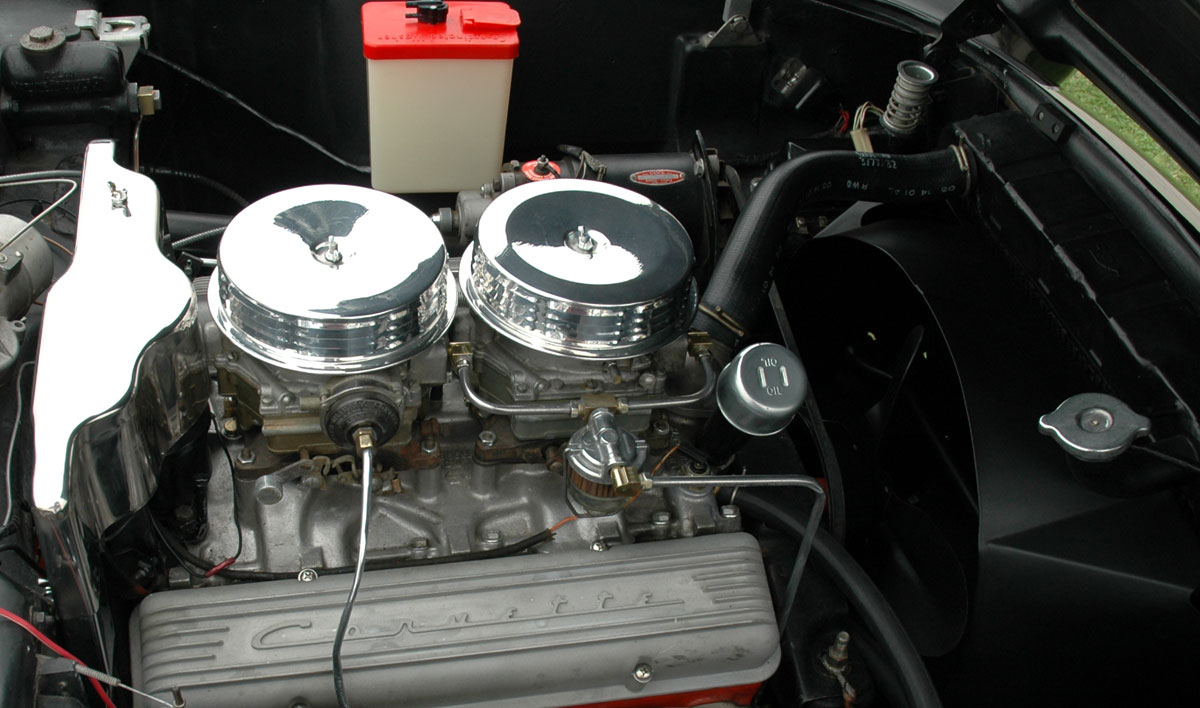

The airbox works by channeling cold air from ahead of the radiator directly to the intake on the fuel injection system. That air is colder and cold air is more dense which enhances horsepower. Most Corvette engines of the era took in air directly above the induction system - see the below photo. This was air heated by the engine - not good for performance.

1957 Corvette Non Airbox Engine Bay

1957 Corvette Non Airbox Engine Bay

Close1957 Corvette Non Airbox Engine Bay

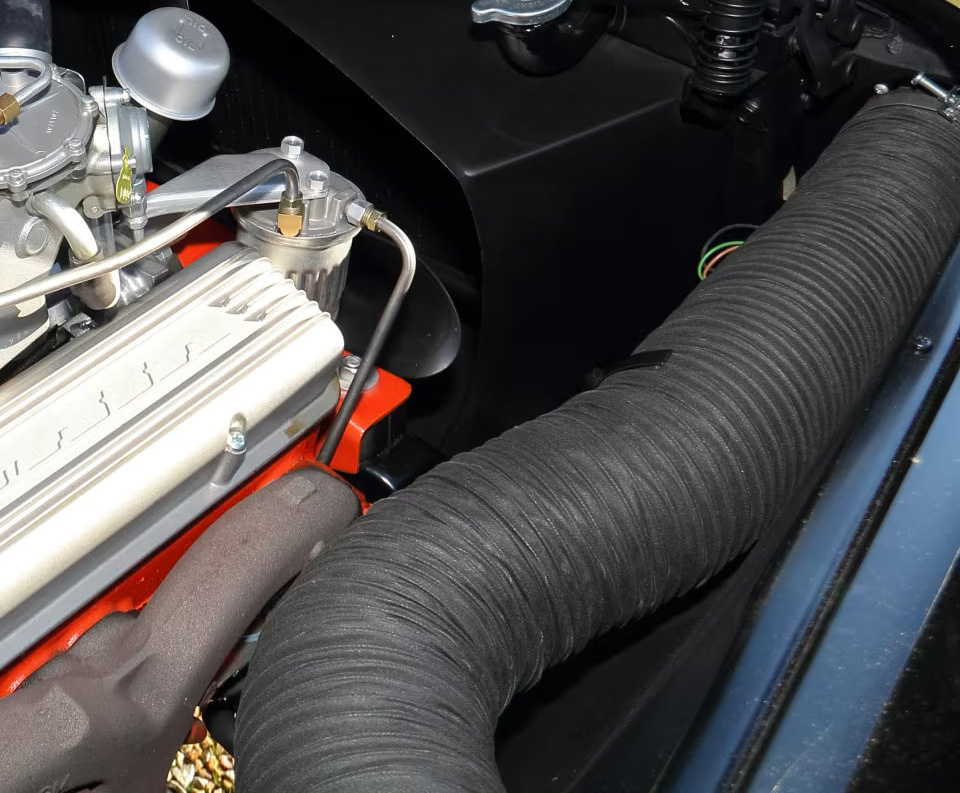

1957 Corvette Code 684 Brake Cooling Duct

1957 Corvette Code 684 Brake Cooling Duct

Close1957 Corvette Code 684 Brake Cooling Duct

All airbox Corvettes had code 684 (Heavy Duty Racing Suspension) which included ducting for brake cooling on the right side of the engine compartment. The cooling air was channeled through the right side rockers to the front and rear brakes. The airbox itself also channeled air to the front and left rear brakes. Drum brakes were what was available in Corvettes in 1957 and, for racing applications, keeping them cool was critical.

To further the case for racing applications, most (if not all) airbox Corvettes came with Code 684, the Heavy Duty Racing Suspension of which 51 were built at a cost of $781.10. The option, which was available on 1957 to 1959 Corvettes, consisted of Heavy Duty Springs and Shocks, Vented Brake Backing Plates, Finned Brake Drums, a Fast Steering Adapter, Heavy Duty Sway Bar and 5-1/2 inch Wide Wheels.

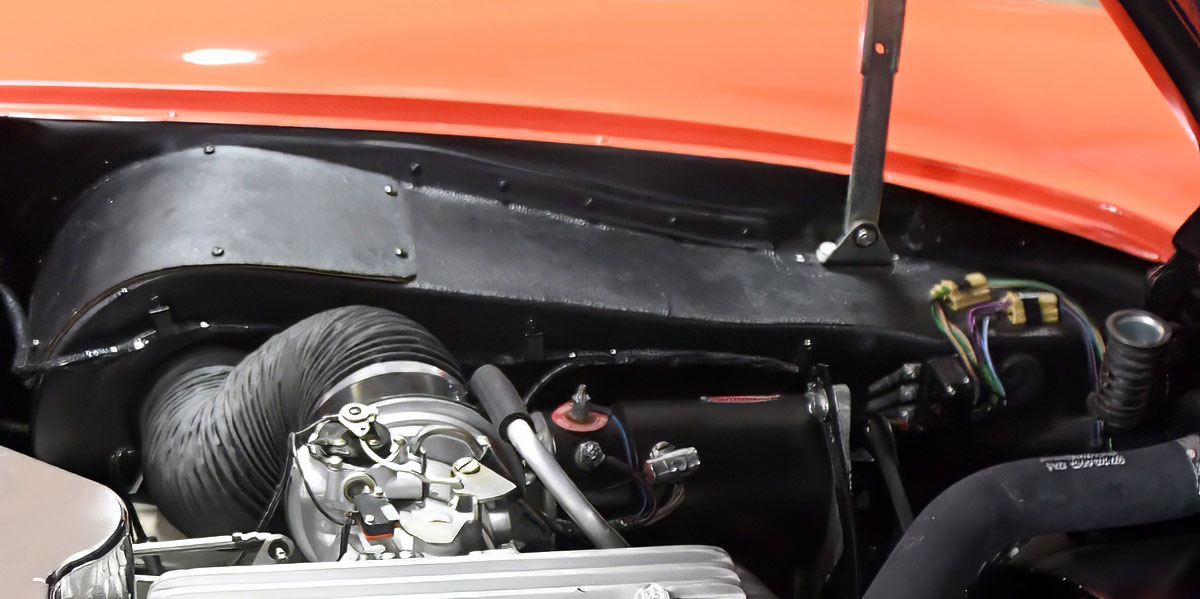

1957 Corvette Airbox

1957 Corvette Airbox

Close1957 Corvette Airbox

The generator, normally located on the left of the engine bay, was relocated to the right to clear up room for the airbox.

Assembly Instruction Manual Airbox Intake

Assembly Instruction Manual Airbox Intake

CloseAssembly Instruction Manual Airbox Intake

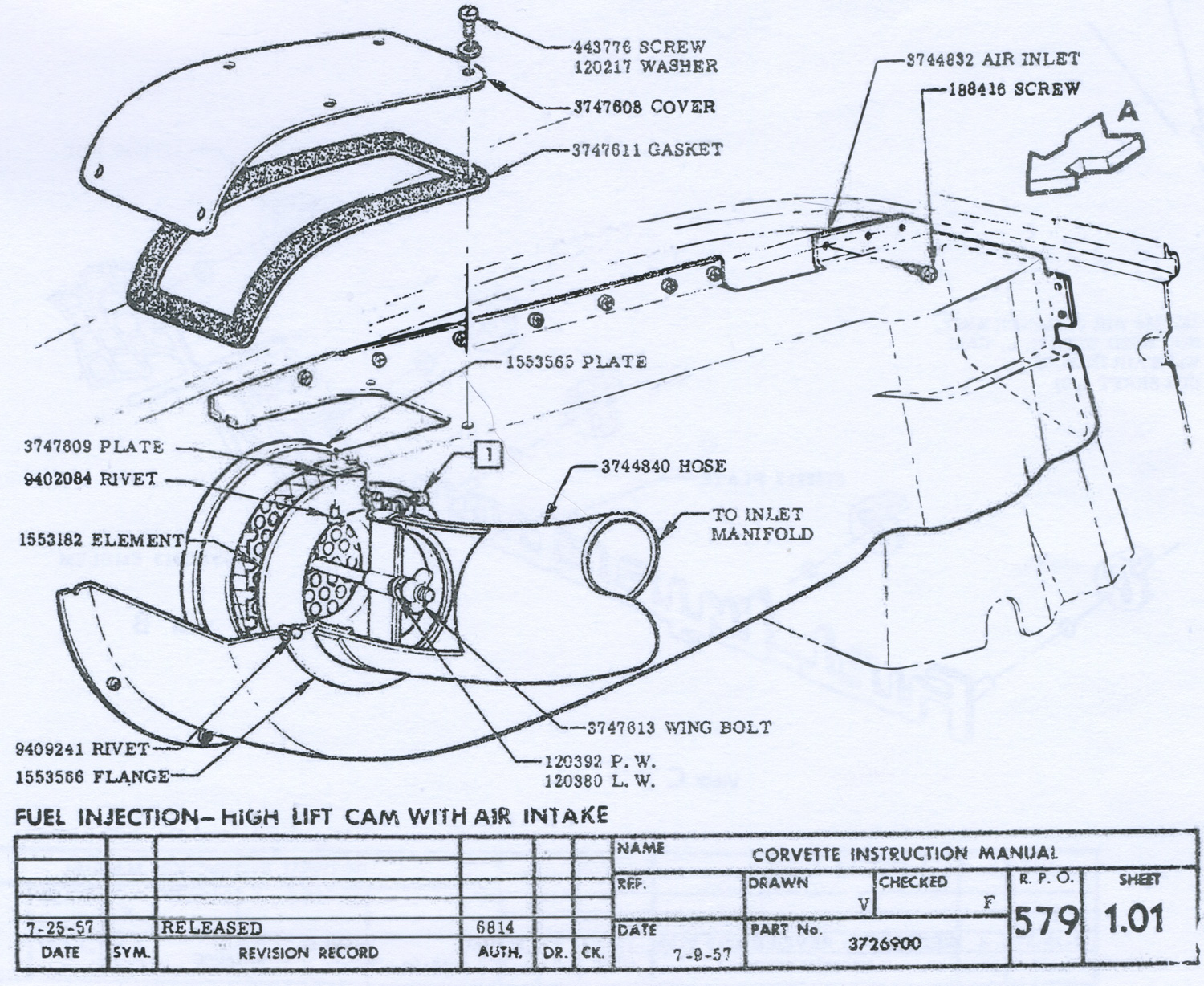

Airbox illustration from the 1956 - 1957 AIM (Assembly Instruction Manual). In addition to being installed on 43 1957 Corvettes, the parts were available from the parts department, enabling others to take advantage of the technology. All airboxes were constructed of fiberglass.

1957 Corvette Airbox License Plate

1957 Corvette Airbox License Plate

Close1957 Corvette Airbox License Plate

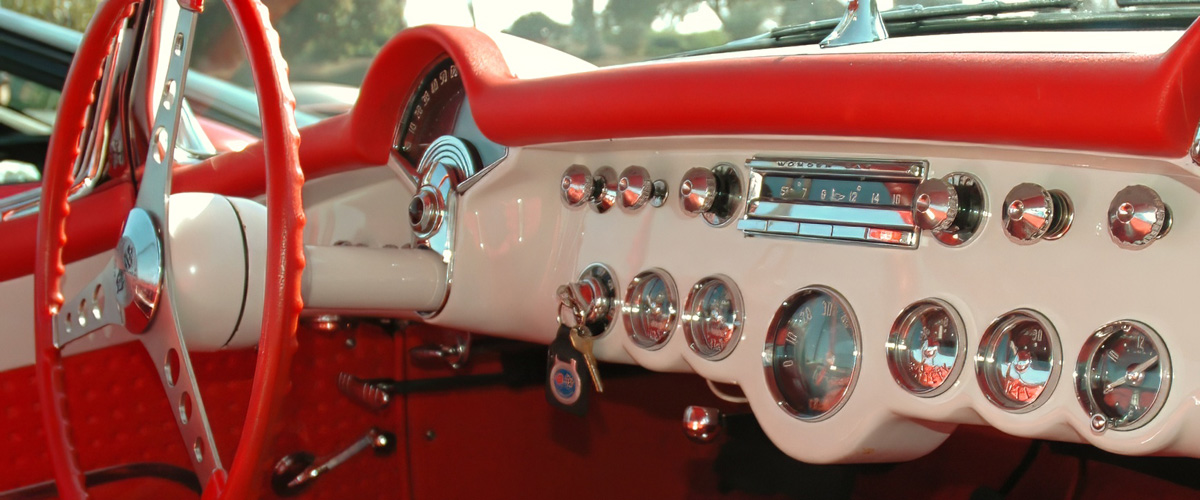

1957 Corvette Stock Dashboard

1957 Corvette Stock Dashboard

Close1957 Corvette Stock Dashboard

Above is the stock dash for the production 1957 Corvette. Note the tachometer in the center; the joke of the day was that the passenger had a better view of the tachometer.

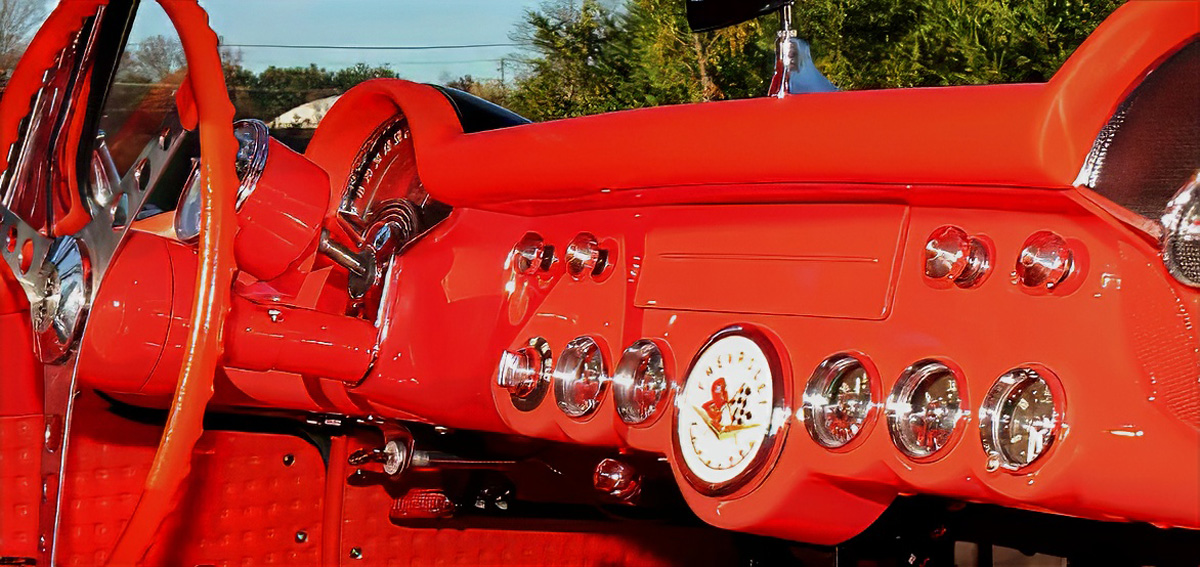

1957 Corvette Airbox Dashboard Tachometer

1957 Corvette Airbox Dashboard Tachometer

Close1957 Corvette Airbox Dashboard Tachometer

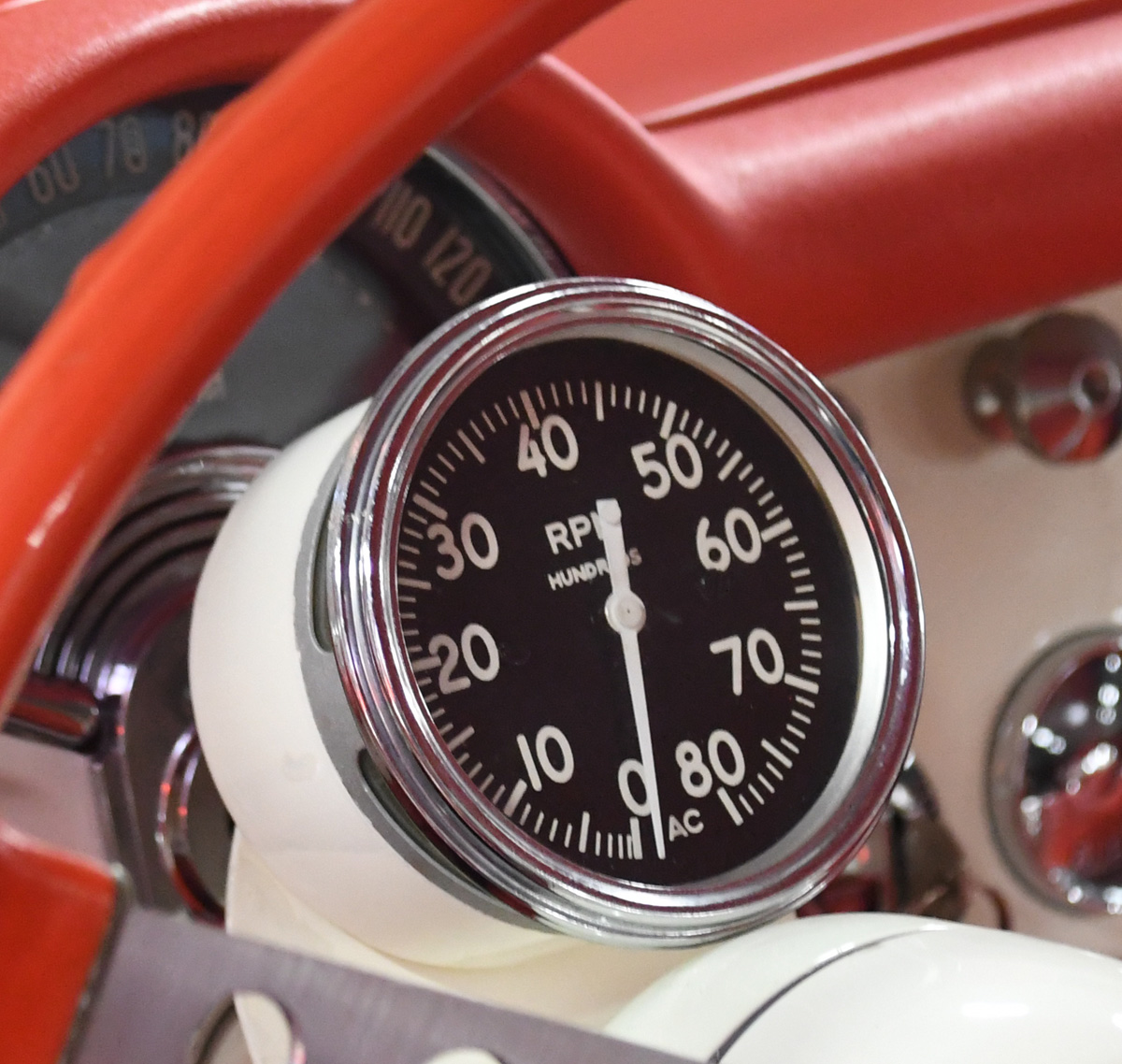

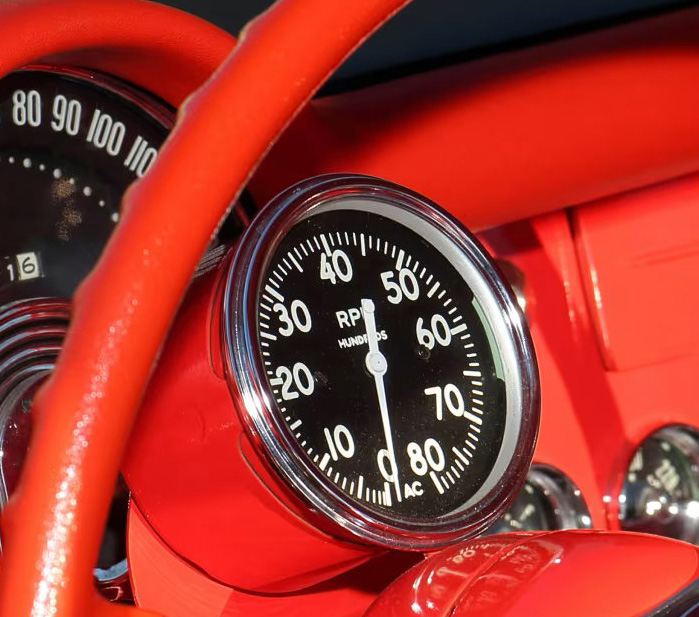

Below: Corvette racers do not have a sense of humor when it comes to important details like instrumentation. All airbox Corvettes had tachometers mounted on the steering column. The previous dashboard location was filled with a trunk emblem.

1957 Corvette Airbox Tachometer

1957 Corvette Airbox Tachometer

Close1957 Corvette Airbox Tachometer
1957 Corvette Airbox Tachometer

1957 Corvette Airbox Tachometer

Close1957 Corvette Airbox Tachometer

SN 4007

The First Airbox Corvette

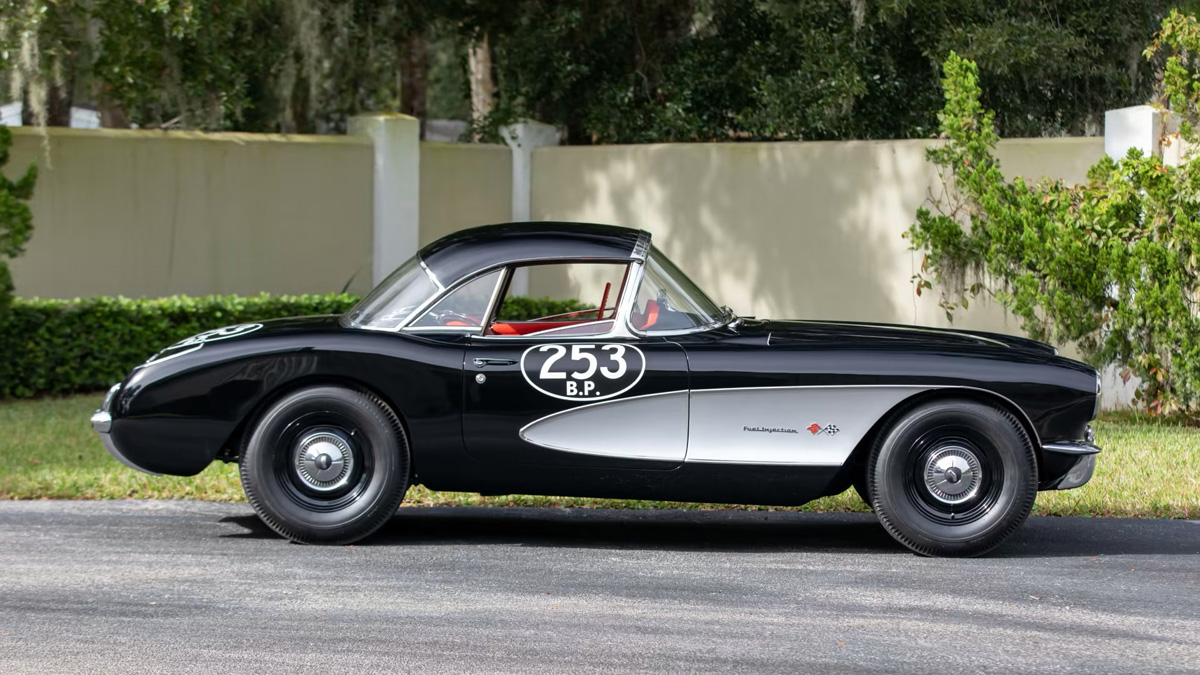

1957 Corvette Airbox SN 4007

1957 Corvette Airbox SN 4007

Close1957 Corvette Airbox SN 4007

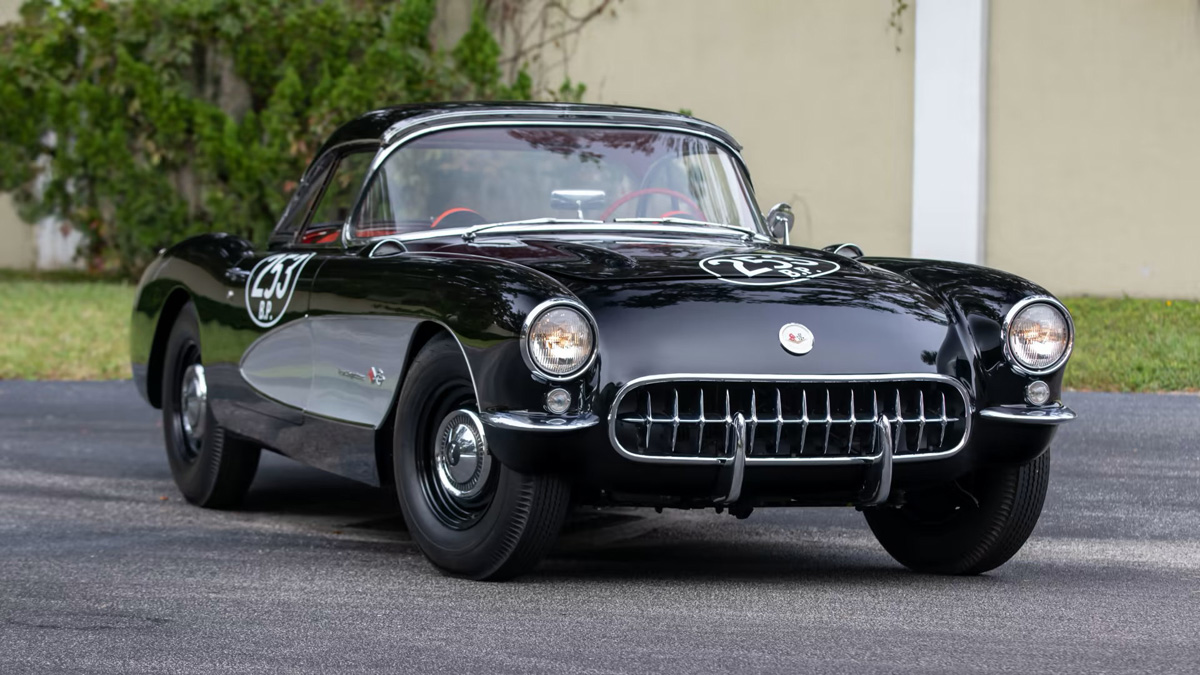

SN 4007 (the full VIN is VE57S104007) is the the earliest known airbox Corvette, completed May 15, 1957.

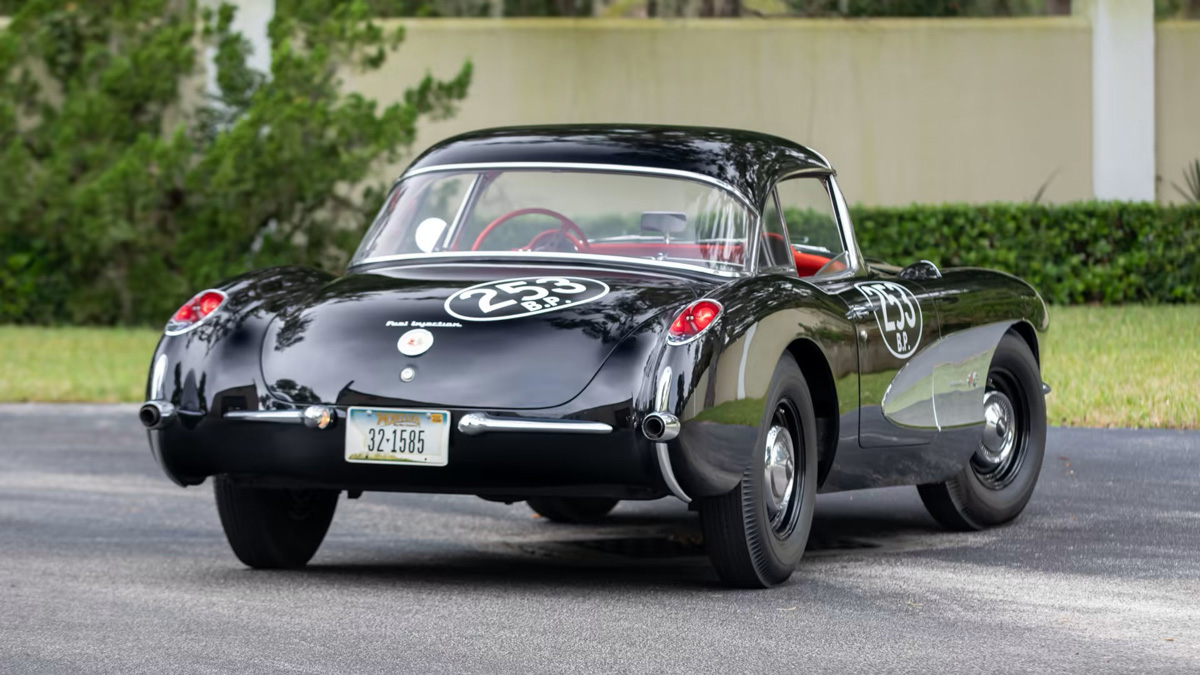

1957 Corvette Airbox SN 4007

1957 Corvette Airbox SN 4007

Close1957 Corvette Airbox SN 4007

SN 4007 has an impressive list of awards, including being part of the Bloomington Gold Special Collection, Ault Park Concours d'Elegance Award of Distinction, multiple NCRS Top Flight Awards and being inducted into the Bloomington Gold Great Hall as one of the most significant cars in Corvette history.

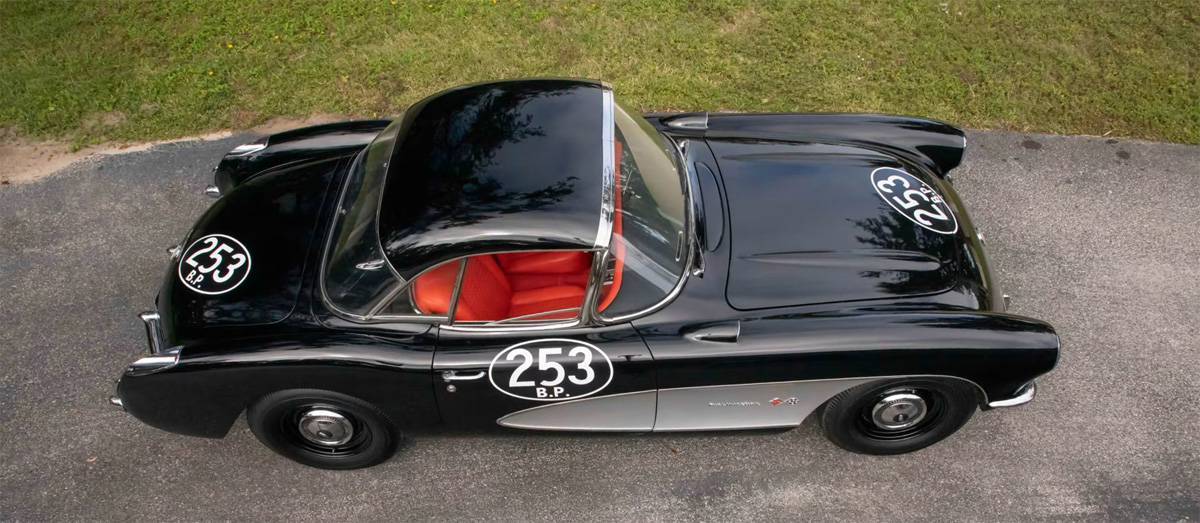

1957 Corvette Airbox SN 4007

1957 Corvette Airbox SN 4007

Close1957 Corvette Airbox SN 4007
1957 Corvette Airbox SN 4007

1957 Corvette Airbox SN 4007

Close1957 Corvette Airbox SN 4007

SN 4007 airbox Corvette was on the auction block at Mecum on January 12, 2019 and was bid to $500,000 but the reserve was not met. More information available at the Vette-Vues Magazine web site. All photos of SN 4007 are courtesy of Mecum Auctions.

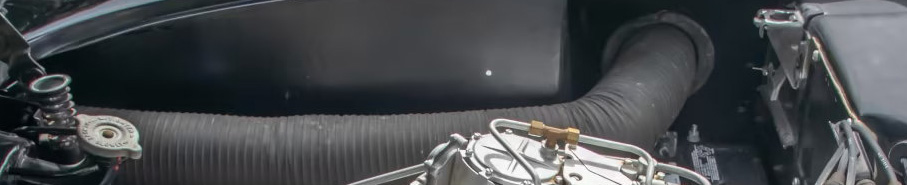

1957 Corvette Airbox Right Side Cooling Ducts

1957 Corvette Airbox Right Side Cooling Ducts

Close1957 Corvette Airbox Right Side Cooling Ducts

Above: The passenger side ducting located on the engine compartment that sent cool air to the right side brakes.

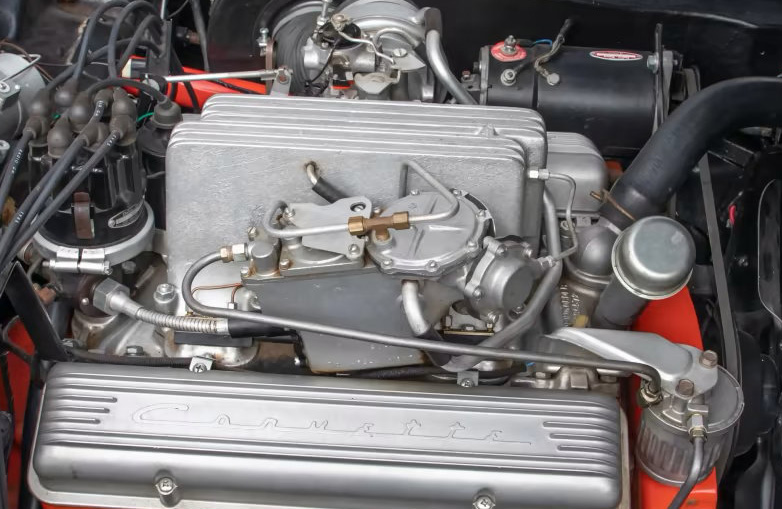

1957 Corvette Airbox Fuel Injection SN 4007

1957 Corvette Airbox Fuel Injection SN 4007

Close1957 Corvette Airbox Fuel Injection SN 4007
1957 Corvette Airbox Fuel Injection SN 4007

1957 Corvette Airbox Fuel Injection SN 4007

Close1957 Corvette Airbox Fuel Injection SN 4007

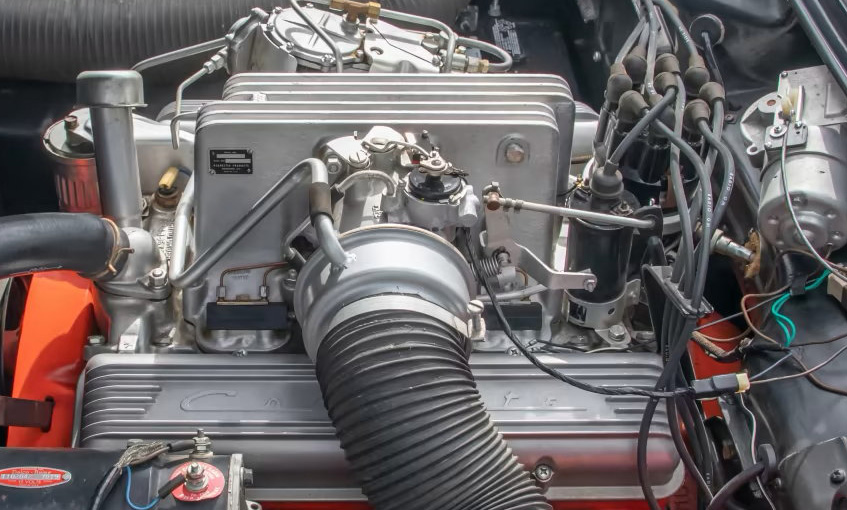

Two views of the SN 4007 fuel injection system. Note the absense of EMI shielding on the spark plug wires and distributors. All airbox Corvettes, being radio delete, did not require the shielding.

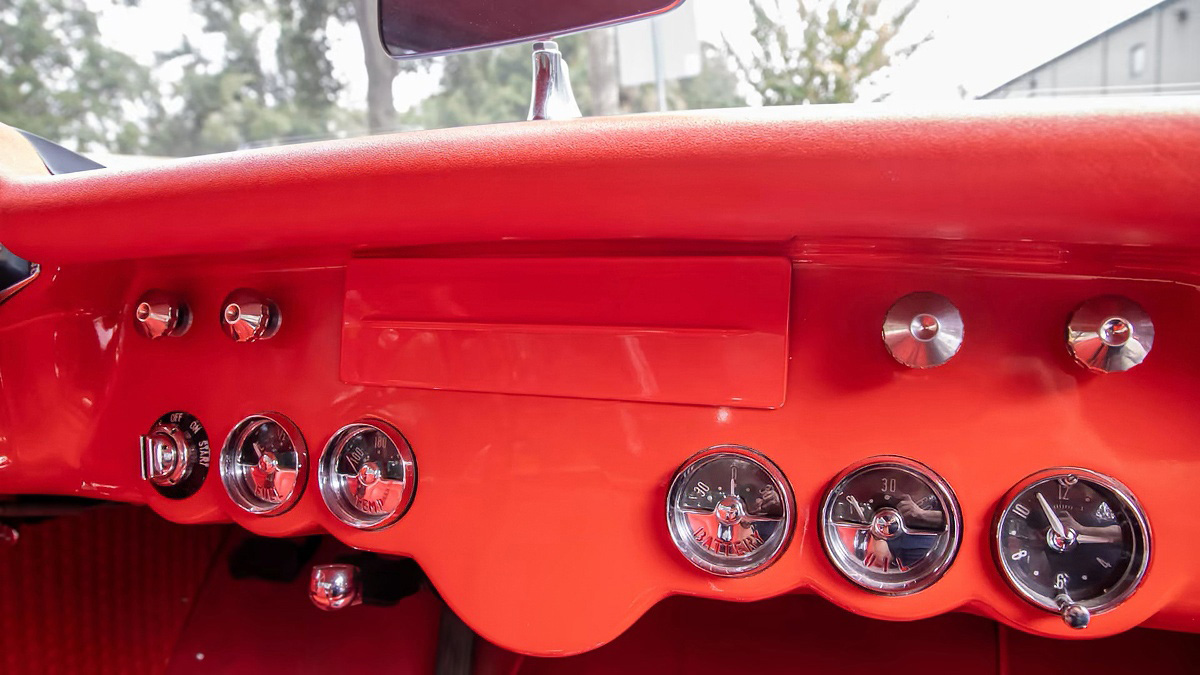

1957 Corvette Airbox Dashboard SN 4007

1957 Corvette Airbox Dashboard SN 4007

Close1957 Corvette Airbox Dashboard SN 4007

SN 4007 dashboard. Note the blank area where the stock Corvette would have a tachometer. Apparently, with it being a prototype of sorts, nobody thought to install the trunk emblem in its place as was done on later airbox Corvettes.
